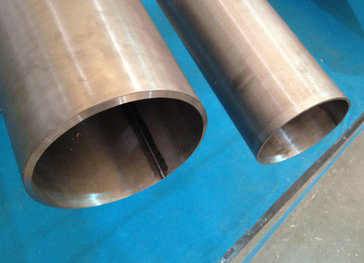

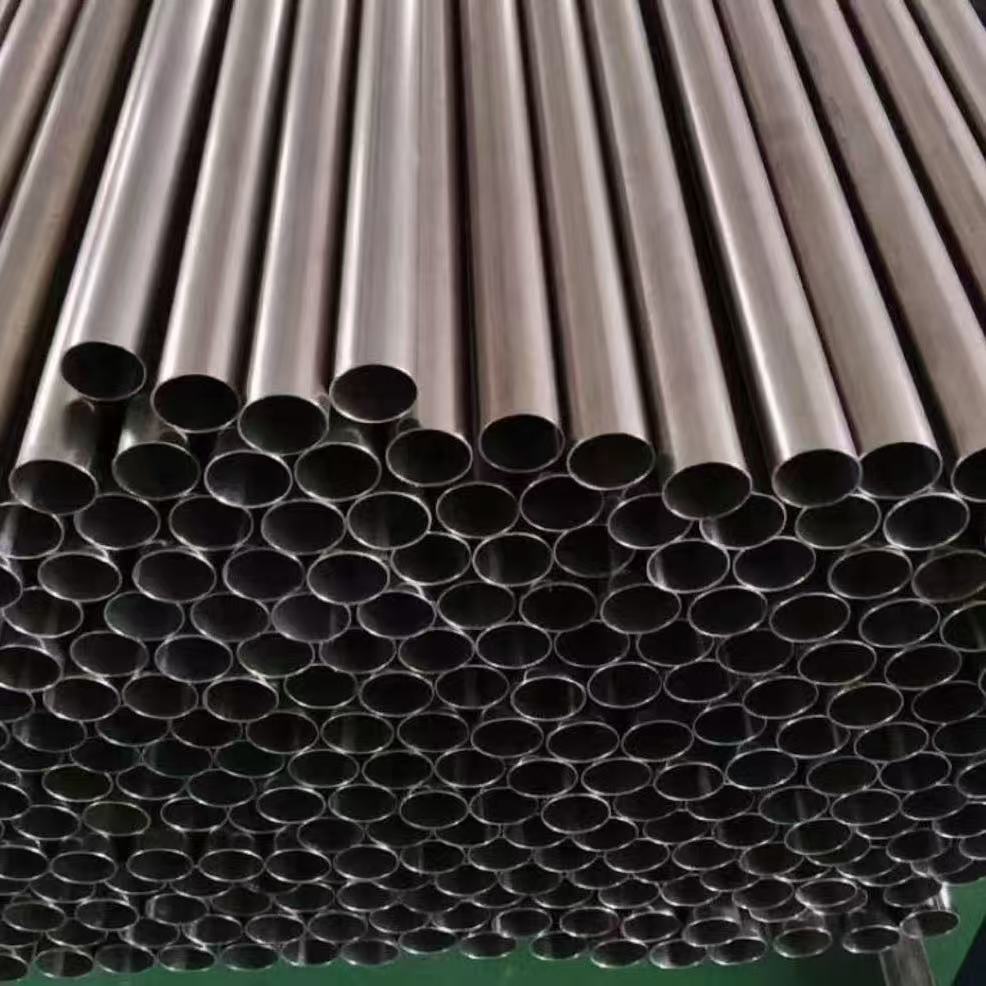

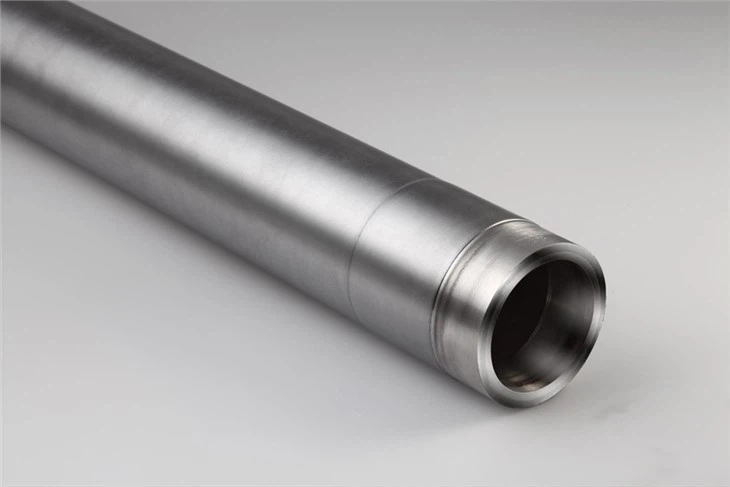

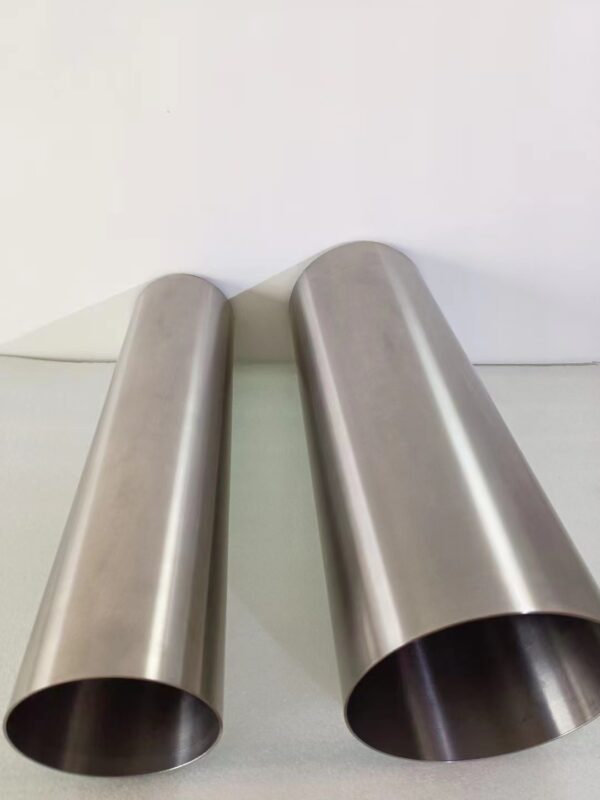

| Commodity | Welded Titanium Tube/ Pipe | Seamless Titanium Tube/ Pipe | ||
| Process method | welded | Cold rolled/ Cold drawn | ||
| Materials Grades | Grades 1, 2, 7, 12, 16. | Grades 1, 2, 3, 7, 9, 11, 12, 16, 17, 26 and 28 | ||
| Standards: | ASTM B862, ASME SB862 , ASTM B338/ ASME SB 338, ASTM B337 | ASTM B338, ASME SB338, ASTM B861, ASME SB861 | ||
| NACE MR175-94 or closer | NACE MR175-94 or closer | |||
| Size | NPS:3 to 48” , Schedule: 5S to XS. Length: 20m or as required. | NPS:1/8 to 14” , Schedule: 5S to XXS. | ||
| OD: 19.05 ~ 31.75 mm, 88.9 ~ 1219 mm, WT: 0.5 ~ 12.7 mm | OD: 3 – 355 mm, Wt: 0.3~ 35mm | |||
| Length:20m or as required. | Length:15m or as required. | |||
| Shape | In straight length or as U-bend | In straight length or as U-bend | ||
| Surface Finished | Annealed/ Mechanical Polish or as required | Annealed/ CWSR/ Mechanical Polish or as required | ||
| Inspection Testing | 100% Visual and Dimension checking. | 100% Visual and Dimension checking. | ||
| 100% Ultrasonic Test, 100%Hydraulic Test, 100% X- Ray Test | 100% Ultrasonic Test, 100%Eddy Current Test, 100%Hydraulic Test, | |||
| Mechanical Test, Bend Test, Inter-granular corrosion Test. | Mechanical Test, Bend Test, Inter-granular corrosion Test. | |||
